Stirling Cooled Detectors

We offer an additional cooling option for our Infrared Detectors.  Stirling Cycle Cooled Detectors are offered in three different design packages allowing operation down to 75K, when required.  This option eliminates the need for Liquid Nitrogen cooling and is ideal for remote or unattended operation.

Group 2

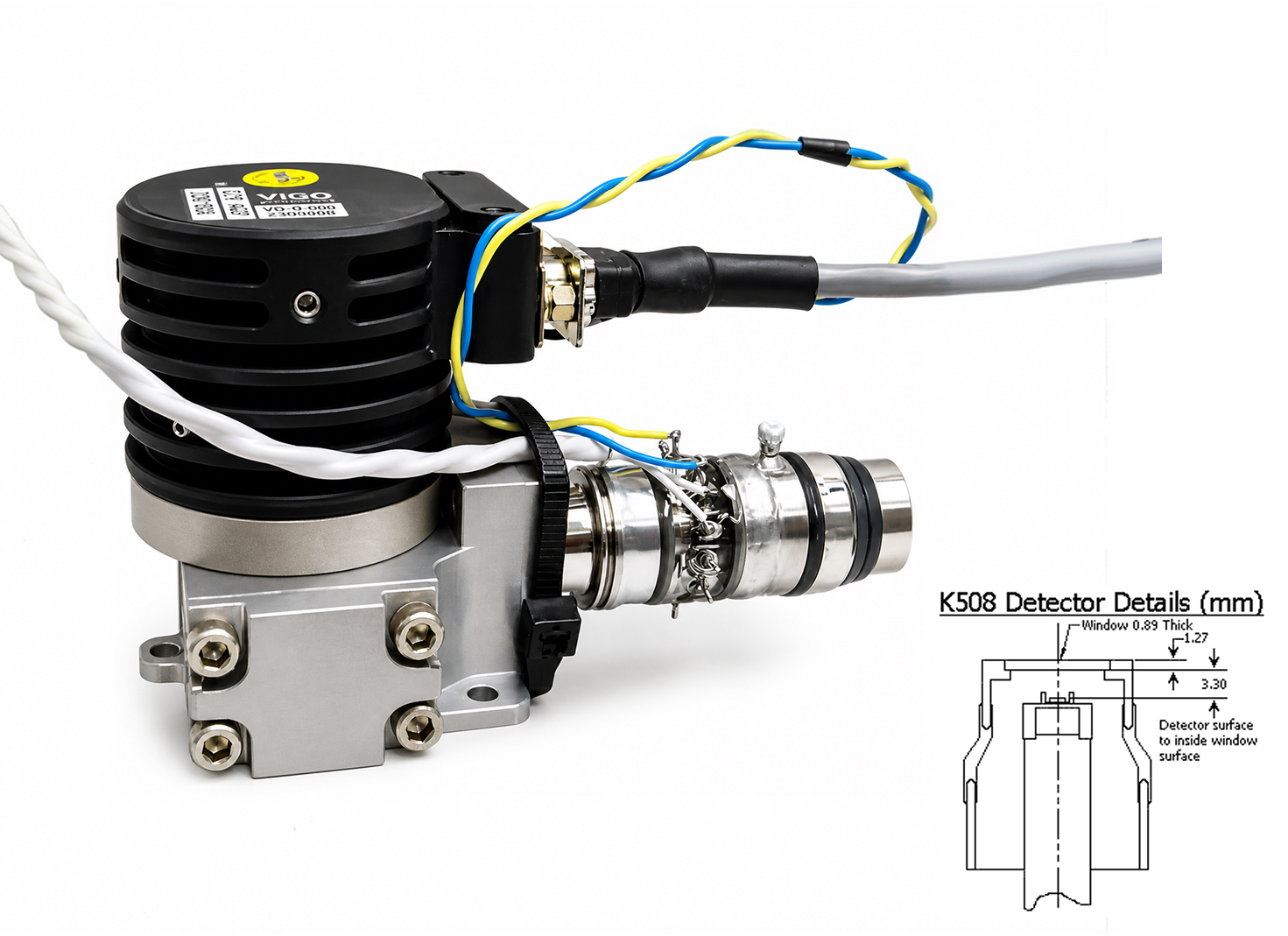

K508 Rohs & K508C(Non Rohs)
Integral Stirling Micro IDDCA:

These Microcooler design models are solidly based on the concepts of direct detector mounting on the cooler's cold finger, and integral construction of cooler and dewar envelope. Operation of the integral Stirling microcooler, driven by a DC brushless motor, is clean, silent and highly reliable. Model K508 has been in service since 1994. This cooler is extensively used in many commercial instruments. These Micro IDCA models contains an onboard temperature controller, which offers standby, remote shutdown and over-temperature /over-current protection options. By adopting various types of dewar envelopes, these microcoolers can meet the cooling demands of most advanced IR detectors.

Cooler Weight: 450 gr.
Input Voltage: 12-16 VDC
Steady State Input Power (220mW @77K @23°C): 7W Typ.
Maximum Input Power: 17W
Ambient Temperature Range:
Operational: -40°C...+85°C
Non-Operational: -56°C...+85°C
Cooldown Time (250J @23°C): 5 Min. Typ.
K508 Rohs MTTF > 25,000 Hrs. (Expected) K508C (Non Rohs) MTTF > 30,000 hrs.
Warranty: K508 Rohs 2 Year Absolute
Meets Environmental Conditions per MIL-STD-810D
K508 Cooler Dimensions.pdf
Group 3

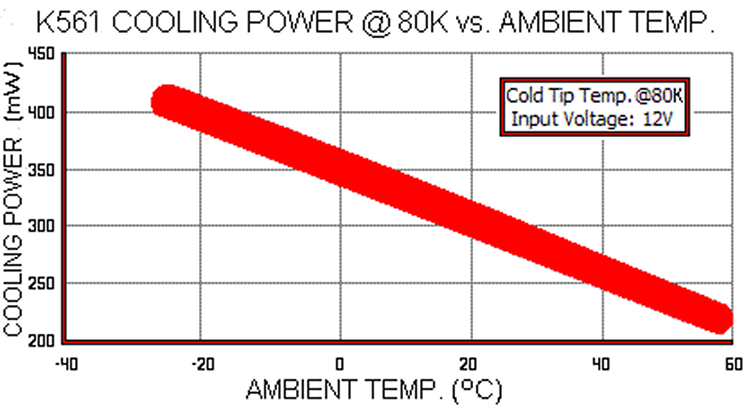

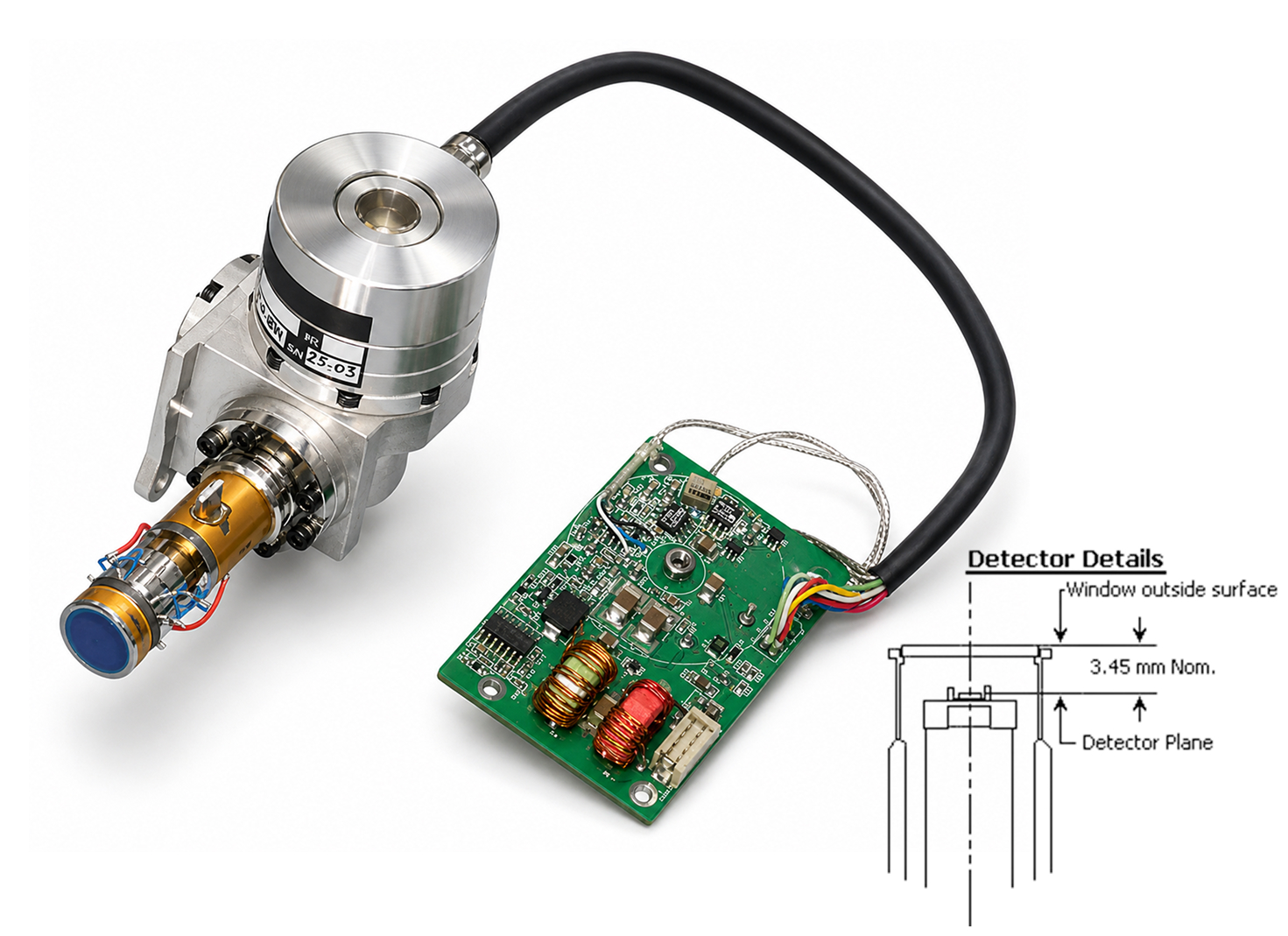

K561 Integral Stirling
Low Power Micro IDCA:

This model was specially developed in order to meet hand-held thermal imagers applications requirements, where compactness, low input power and cooler lightweight are most important parameters.

Cooler Weight: 270 gr.
Input Voltage: 12 VDC
Steady State Input Power (170mW @80K @23°C): 4.5W Typ.
Maximum Input Power: 14W
Ambient Temperature Range: -40°C...+71°C
Cooldown Time (190J @23°C): 5 Minutes Typ.
MTTF > 5,000 Hours
Meets Environmental Conditions per MIL-STD-810D
image 37
K561 Stirling Dimensions.pdf
image 34

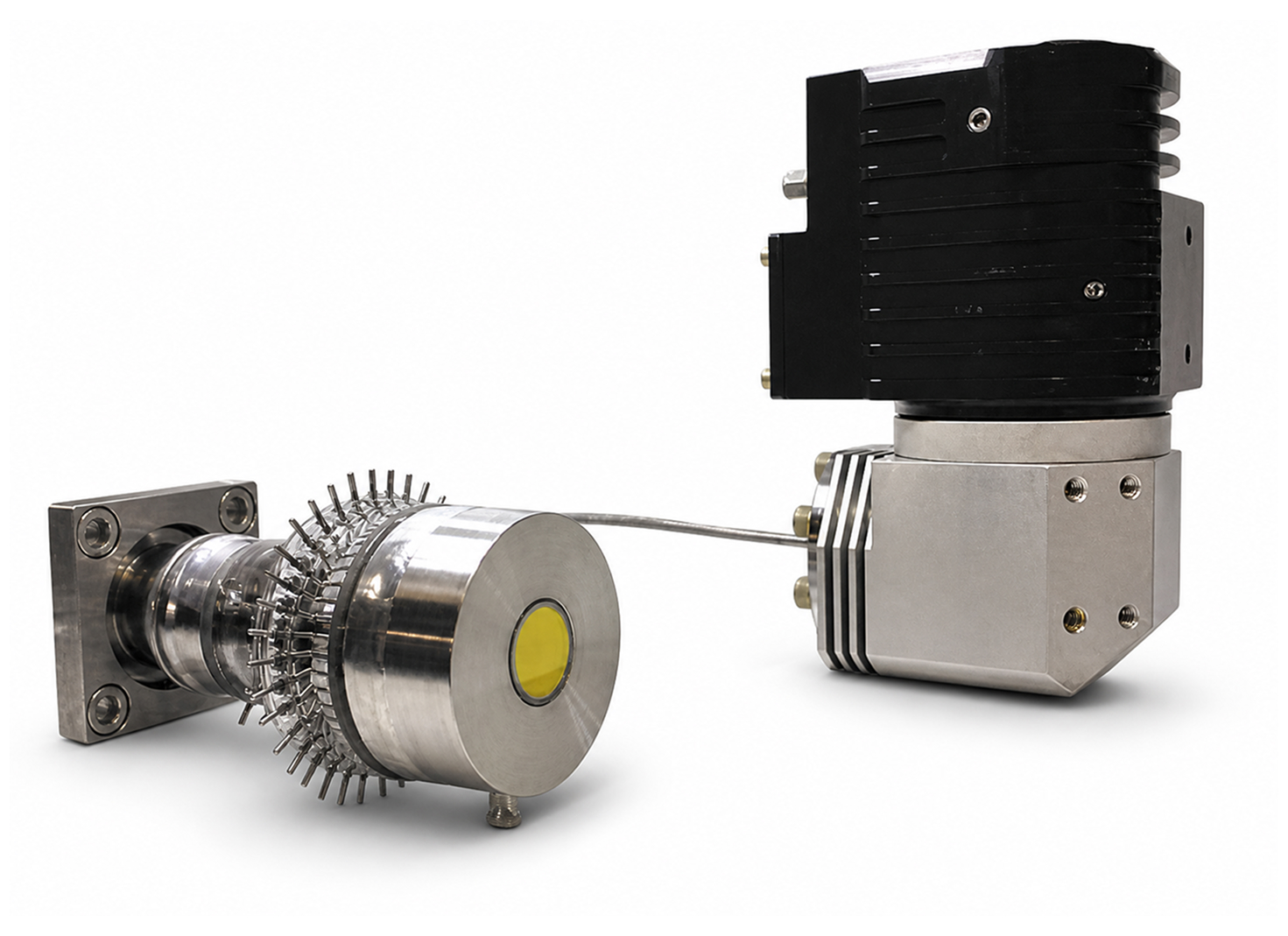

K549 Split Stirling Cryocooler

This cooler combines the famous reliability and rigidity of our microcooler family with the split configuration for compactness and better control of heat rejection and vibrations. Cold finger/dewar assembly identical and interchangeable with model K508. Built-in electronic module contains closed loop temperature controller and various options for motor stator configuration motor voltage and accessories.

Cooler Weight: 770 gr.
Input Voltage: 12-16 VDC
Steady State Input Power (220mW @77K @23°C): 9W Typ.
Maximum Input Power: 32W
Ambient Temperature Range:
Operational: -40°C...+71°C
Non-Operational: -56°C...+85°C
Cooldown Time (150J @23°C): 2:15 Minutes Typ.
MTTF > 10,000 Hours
Meets Environmental Conditions per MIL-STD-810D
